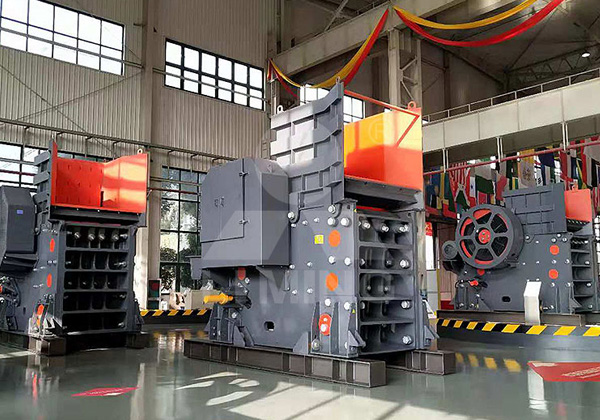

Primary Jaw Crusher

A primary jaw crusher is a type of crusher used to reduce large rocks and ore into smaller sizes for further processing in various applications. It is the first stage of the crushing process and is used to break down materials such as granite, basalt, limestone, and other hard and abrasive rocks. The primary jaw crusher plays a crucial role in reducing the size of raw materials for further processing in quarries, mining operations, recycling plants, and construction sites.

Working Principle

The primary jaw crusher operates using a simple mechanism. It consists of a fixed jaw plate and a moving jaw plate, with one mounted on a fixed body and the other attached to an eccentric shaft. As the eccentric shaft rotates, the moving jaw plate pushes and pulls material against the fixed jaw plate, crushing it. The crushed material then falls through a discharge opening at the bottom of the crusher, ready for further processing or transport to secondary crushing stages. The gap settings of the jaws can be adjusted to achieve the desired output size. This flexibility allows for customization in the production process to meet specific needs.

Features and Advantages

Primary jaw crushers are known for their robustness and high capacity. They are designed to handle large feed sizes and can reduce material up to several feet in diameter to sizes ranging from 6 inches to 2 inches. The benefits of using primary jaw crushers include:

1. Capacity: Primary jaw crushers are capable of handling large feed sizes and high capacities, making them suitable for processing materials such as hard rock, gravel, and ore. The crushing capacity can vary depending on the model, but they are generally designed to handle materials with high compressive strength.
2. Versatility: These crushers are versatile and can be used in a variety of applications, including mining, quarrying, recycling, and construction. They are suitable for processing a wide range of materials, including granite, basalt, limestone, and other types of hard rock.
3. Durability: The robust construction of primary jaw crushers makes them capable of handling high-intensity operations. They are designed to withstand the heavy impact of hard materials and are often equipped with replaceable wear-resistant parts, which extend the life of the crusher.
4. Ease of Maintenance: Primary jaw crushers are relatively easy to maintain. The quick-release hoppers, for instance, make it easier to replace and repair parts such as jaw plates and bearings. Regular maintenance and checks are necessary to ensure that the machine continues to function efficiently.
5. Safety Features: Safety is a key concern in any heavy-duty machinery. Jaw crushers come equipped with safety features such as anti-slap devices, overload protection, and emergency stop buttons to protect both the equipment and operators from accidents.

Maintenance and Operation

Proper maintenance is crucial for the efficient operation of primary jaw crushers. Regular inspections and servicing are necessary to ensure the crusher’s components, such as bearings, flywheels, and jaw plates, are in good working condition. Lubrication is also vital to minimize wear and tear on moving parts. The crusher should be operated within specified limits to avoid overloading, which can cause mechanical failure or reduced efficiency. Safety protocols should always be followed to protect operators and prevent accidents during operation and maintenance.

Specifications – Technical Data

Notice:
1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
