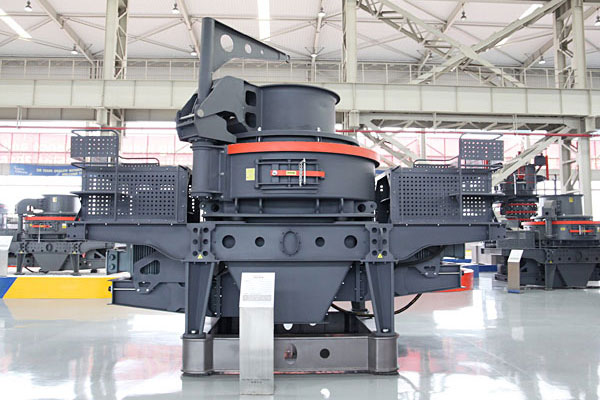

Vertical Shaft Impact Crusher (VSI)

A Vertical Shaft Impact Crusher (VSI) is a type of crushing equipment designed to produce high-quality sand and aggregate from various materials, including hard stone, minerals, and ores. Known for its ability to produce fine and uniform grains, the VSI crusher is widely used in the construction industry, particularly for sand production and shaping. Here is an overview of the VSI crusher, its working principle, key features, and applications.

Working Principle

The VSI crusher operates on the principle of impact crushing. It uses high-speed rotation to impart kinetic energy to the material, which is then struck against a high-energy crushing chamber and other materials inside the machine. As the material enters the rotor, it accelerates and is thrown against a series of anvils or impact plates, where it breaks into smaller pieces. The centrifugal force generated by the rotor’s high-speed rotation causes the material to be thrown outwards and collide with the crushing chamber’s interior surfaces. This process causes the material to fracture and break into smaller, more uniformly shaped particles.

Key Features

1. Efficiency: VSI crushers are known for their high efficiency in reducing the size of materials. They can handle a wide range of feed sizes and produce consistent and high-quality output. The energy efficiency of a VSI is typically higher than that of other crushers because it operates at higher speeds and can generate more impact force.
2. Versatility: One of the key advantages of VSI crushers is their versatility. They can process a variety of materials, including hard rocks like granite, basalt, and quartz, as well as softer materials such as limestone and cement. This adaptability makes them ideal for use in different crushing applications, from aggregate production to industrial sand manufacturing.
3. Controlled Fines Production: VSI crushers are designed to produce a high percentage of fine particles with a controlled particle size distribution. This ability to control the size and shape of the product is beneficial for creating sand and aggregates with consistent quality, which is crucial for construction and concrete production.
4. Low Maintenance: VSI crushers are generally low maintenance. Their design allows for easy access to the rotor and wear parts, which reduces downtime and operational costs. Regular inspections and timely replacement of wear parts, such as anvils and impact plates, are usually sufficient to maintain the machine’s performance and efficiency.
5. Automation and Adjustability: Modern VSI crushers come with automation features that allow for better control over the crushing process. Parameters such as rotor speed, feed rate, and the setting of the impact chamber can be adjusted remotely, providing flexibility in production.

Specifications – Technical Data
