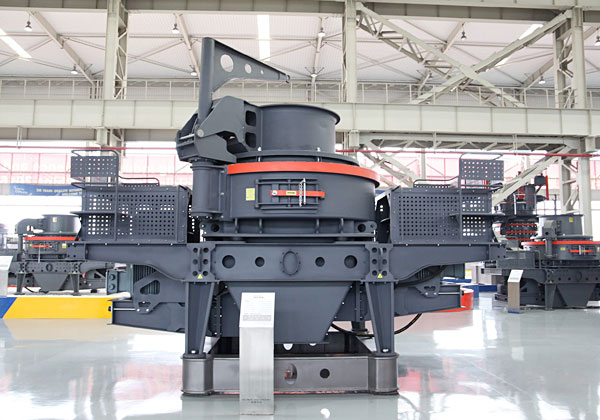

Machine-made sand vertical shaft impact crusher

A Vertical Shaft Impact (VSI) Crusher is a type of crushing equipment widely used for the production of machine-made sand. It is designed to create fine aggregates, especially sand, by breaking down larger rocks through high-speed impact forces. VSI crushers are an essential part of modern sand-making processes due to their efficiency, versatility, and ability to produce high-quality sand that meets the specifications required for construction, concrete, and asphalt production.

Working Principle of VSI Crusher

The working principle of a VSI crusher revolves around the use of high-speed rotor and a unique crushing chamber. The material enters the crusher through an opening at the top of the machine. Inside the chamber, a high-speed rotor throws the material against a series of anvils or impact plates. The impact force generated breaks the material into smaller particles, and the crushed particles are further shaped as they collide with the surrounding materials or chamber walls. The high-speed impact causes the material to break down into smaller particles, resulting in fine aggregates, typically in the form of sand.

In the context of machine-made sand production, VSI crushers are particularly effective because they are capable of producing high-quality, cubical-shaped sand, which is ideal for use in concrete mixes and other construction applications.

Features of a VSI Crusher for Machine-Made Sand

  • High Rotor Speed: VSI crushers have high rotor speeds, which allow them to generate sufficient impact forces to break down materials into fine aggregates.
  • Shape and Gradation: One of the primary advantages of VSI crushers in sand production is their ability to produce well-graded, cubical-shaped particles. This is important for high-quality machine-made sand that is ideal for concrete mixing, as it improves strength and durability.
  • Versatility: VSI crushers can handle a wide range of materials, including soft, medium, and hard rocks. They are used for making sand from materials like granite, limestone, basalt, and dolomite. The ability to adapt to various feed materials makes VSI crushers a popular choice in many industries.
  • Adjustable Output: The discharge size and shape can be adjusted by modifying the rotor speed and the gap between the rotor and the anvil. This allows operators to customize the output according to their needs, whether they require coarse aggregates or fine sand.

Vertical Shaft Impact Crushers are crucial machines in the modern sand-making industry, especially for the production of high-quality machine-made sand. With their ability to produce consistent, well-shaped sand at high volumes, VSI crushers are a vital part of quarrying, construction, and concrete production industries. Their efficiency, adaptability, and environmental benefits make them a popular choice for large-scale sand production operations.
